Double layered lintels

Pre-stressed double layered lintels are produced according to standards, in Danish normal format, in running bond.

Sizing
Carlsberg Bjælker ' s-specific calculation, according to applicable standards. Sizing, static calculations and goods declarations are included in the price.

Dimensions for pre-stressed double layered lintels
They are produced up to a length of 22 bricks - 5,270 mm - for light widths of maximum 5,030 mm, because the shortest crossbar should sit on 1/2 brick at both ends of the brick beam.

Double layered lintels for back-up masonry and façade

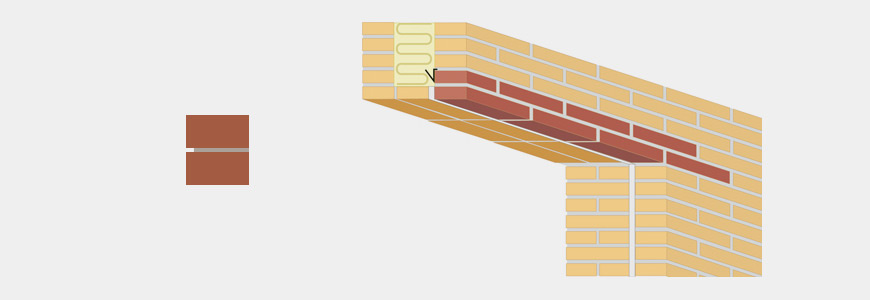

11 cm long double layered lintel
11 cm (NN)* in back-up or front bricks.

Front lintels for visible masonry are always made of the same brick part used for the facade masonry.
Double layered lintels are produced up to a length of 22 bricks, for a light opening of maximum 5,020 mm.
Sizing: Masonry project programme version 3.0

These lintels are normally used over door and window openings with spans of over 2,410 mm.

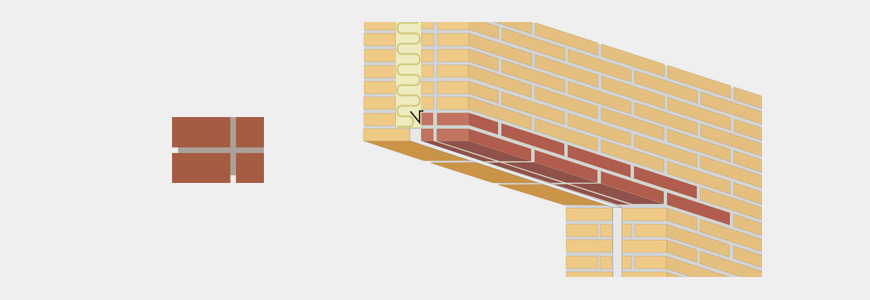

17-cm long double layered lintel
17 cm (BB)* in back-up or façade bricks.

Front lintels for visible masonry are always made of the same brick part used for the facade masonry.
Double layered lintels are produced up to a length of 22 bricks, for a light opening of maximum 5,020 mm.
Sizing: Masonry projection programme version 3.0

These lintels are normally used over door and window openings with spans of over 2,410 mm.

20/11-cm long double layered lintel
20/11 cm (HN)* in back-up or front bricks.

Front lintels for visible masonry are always made of the same brick part used on for the facade masonry.
Double layered lintels are produced up to a length of 22 bricks, for a light opening of maximum 5,020 mm.
Sizing: Masonry projection programme version 3.0

These lintels are normally used over door and window openings with spans of over 2,410 mm.

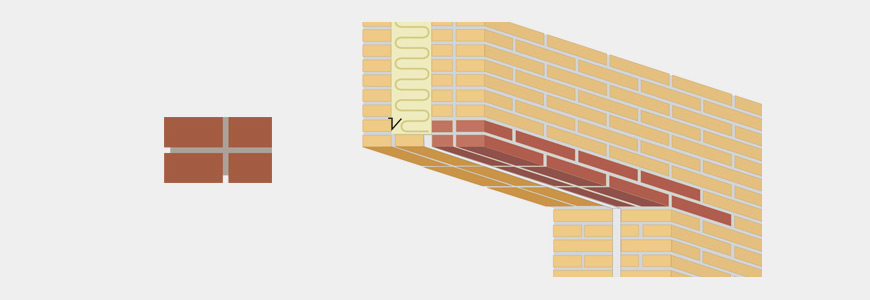

20-cm long double layered lintel
20-cm wide (2 x 20)* in back-up or front bricks.

Front lintels for visible masonry are always made of the same brick part used on for the facade masonry.
Double layered lintels are produced up to a length of 22 bricks, for a light opening of maximum 5,020 mm.
Sizing: Masonry projection programme version 3.0

These lintels are normally used over door and window openings with spans of over 2,410 mm.

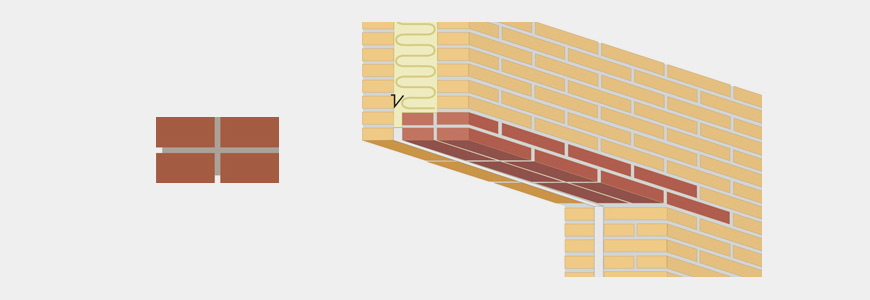

23-cm long double layered lintel
23 cm wide (HH)* in back-up or front bricks.

Front lintels for visible masonry are always made of the same brick part used on for the facade masonry.
Double layered lintels are produced up to a length of 22 bricks, for a light opening of maximum 5,020 mm.
Sizing: Masonry projection programme version 3.0

These lintels are normally used over door and window openings with spans of over 2,410 mm.

27/11-cm double layered lintel
27/11 cm wide (27/HN)* in back-up or front bricks.

Front lintels for visible masonry are always made of the same brick part used on for the facade masonry.
Double layered lintels are produced up to a length of 22 bricks, for a light opening of maximum 5,020 mm.
Sizing: Masonry projection programme version 3.0

These lintels are normally used over door and window openings with spans of over 2,410 mm.

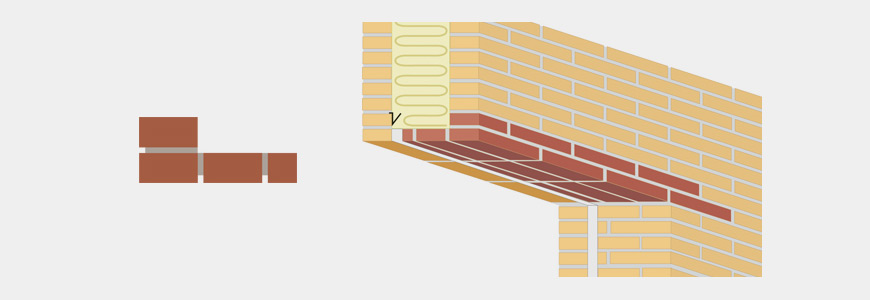

29/11-cm double layered lintel
29/11 cm wide (29/HN)* in back-up or front bricks.

Front lintels for visible masonry are always made of the same brick part used on for the facade masonry.
Double layered lintels are produced up to a length of 22 bricks, for a light opening of maximum 5,020 mm.
Sizing: Masonry projection programme version 3.0

These lintels are normally used over door and window openings with spans of over 2,410 mm.

* The first letter/The first number between brackets is the width of the lowest layer.
The second letter/The second number means the width of the respective layer.
N: The width of a brick in Danish normal format, 11 cm.
W: The width of a wide brick in Danish normal format, 17 cm.
H: The length of a brick in Danish normal format, 23 cm.

Pre-stressed 2-layer lintels are produced in the mentioned standard versions.
The sizing, static calculation and goods declaration are included in the price.

Double layered lintels in a different bond or with different width are calculated separately.

For technical information and calculations please contact:
Carlsberg Bjælker A/S
E-mail cb@carlsbergbjaelker.dk
Phone: +45 87 11 45 11
Fax: +45 87 11 45 10
