3-layer lintels

Pre-stressed 3-layer lintels are produced according to standards, in Danish normal format, in running bond.

Sizing
Carlsberg Bjælker's-specific calculation, according to applicable standards. Sizing, static calculations and goods declarations are included in the price.

Dimensions for pre-stressed 3-layer lintels
They are built with up to 28 bricks - 6,710 mm - for light openings of maximum 6,230 mm.

The beams are calculated so that they can bear the occurring load. The beams may be produced with movable reinforcement.

3-layer lintels for back-up masonry and façade

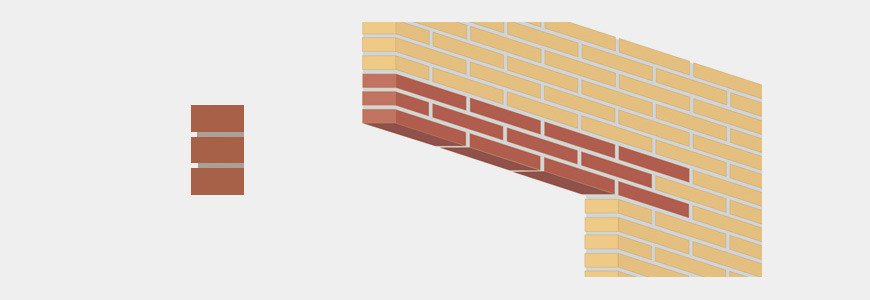

11 cm long 3-layer lintel
11 cm wide (3N)* in back-up or facing bricks.

Front lintels for visible masonry are always made of the same brick part used on for the facade masonry.
Triple layered lintels are produced up to a length of bricks for a light opening of maximum 6,230 mm, or on request.

These lintels are normally used over door and window openings with spans of over 4,810 mm.

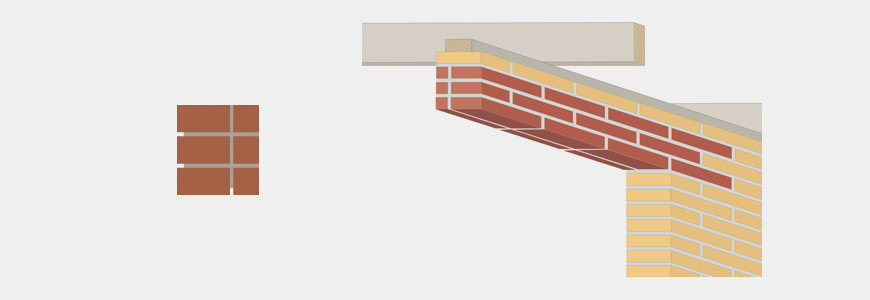

17 cm long 3-layer lintel
17 cm wide (3B)* in back-up or front bricks.

Front lintels for visible masonry are always made of the same brick part used on for the facade masonry.
Triple layered lintels are produced up to a length of bricks for a light opening of maximum 6,230 mm, or on demand.

These lintels are normally used over door and window openings with spans of over 4,810 mm.

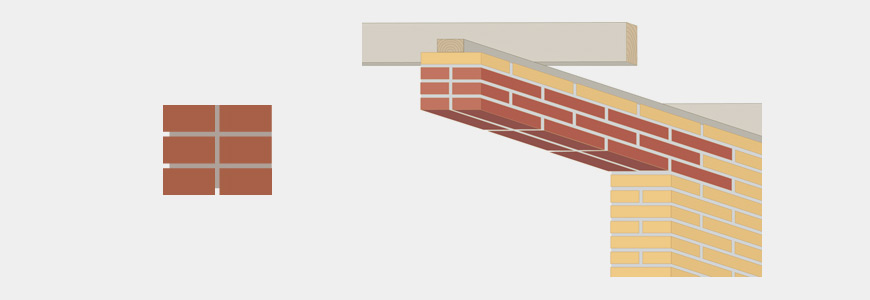

23-cm long 3-layer lintel
23 cm wide (3H)* in back-up or front bricks.

Front lintels for visible masonry are always made of the same brick part used on for the facade masonry.
Triple layered lintels are produced up to a length of bricks for a light opening of maximum 6,230 mm, or on demand.

These lintels are normally used over door and window openings with spans of over 4,810 mm.

* The first letter/The first number between brackets is the width of the lowest layer.
The second letter/The second number means the width of the respective layer.
N: The width of a brick in Danish normal format, 11 cm.
W: The width of a wide brick in Danish normal format, 17 cm.
H: The length of a brick in Danish normal format, 23 cm.

Pre-stressed 3-layer lintels are produced in the mentioned standard versions.
The sizing, static calculation and ware declaration are included in the price.

Double layered lintels in a different bond or with different width are calculated separately.

Please note: You must specify the type of bond and the start code when you order.

For technical information and calculations please contact:
Carlsberg Bjælker A/S
E-mail cb@carlsbergbjaelker.dk
Phone: +45 87 11 45 11
Fax: +45 87 11 45 10
